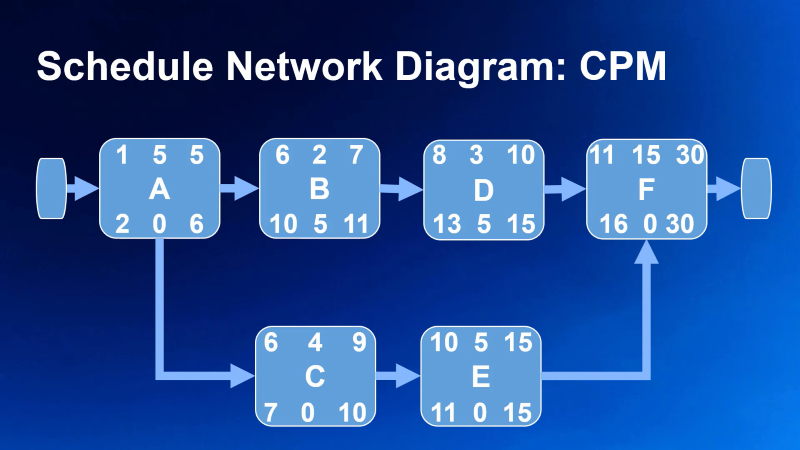

TOPIC: Wrong network diagram in "L06.03 - Sequence Activities Part 2"

Wrong network diagram in "L06.03 - Sequence Activities Part 2" 5 years 2 months ago #14564

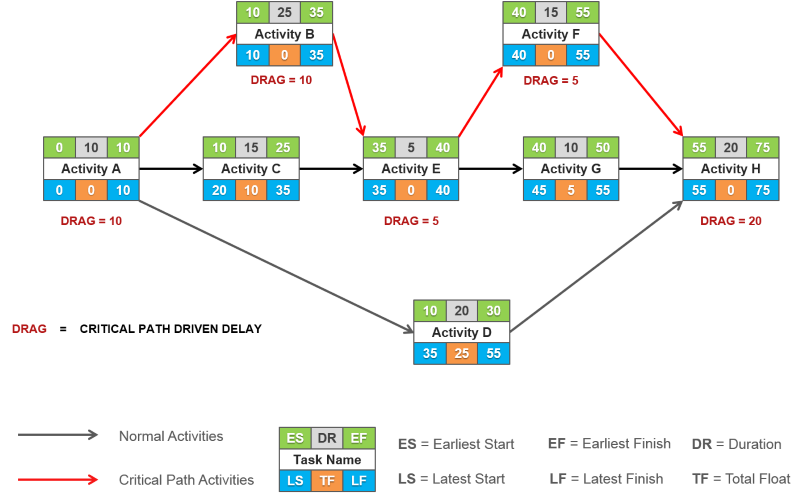

 Ruslan Krey Topic Author Offline Fresh Boarder Posts: 3 Thank you received: 1 There are so many things wrong on the diagram in L06.03. I have also attached the example of correct diagram. Hope it will make your PMP course better. Attachments: Your e-mail address will never be displayed on the site. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.

Wrong network diagram in "L06.03 - Sequence Activities Part 2" 5 years 2 months ago #14565

 Cornelius Fichtner Offline Administrator President, OSP International LLC Posts: 1964 Karma: 116 Thank you received: 592 Hello Ruslan, Would you please explain why you think the network diagram we used is wrong? I'd like to understand your reasoning behind the changes you have applied to it. Thank you! Until Next Time, Cornelius Fichtner, PMP, CSM President, OSP International LLC The following user(s) said Thank You: John Wolverton Your e-mail address will never be displayed on the site. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.

Wrong network diagram in "L06.03 - Sequence Activities Part 2" 5 years 2 months ago #14570

 Ruslan Krey Topic Author Offline Fresh Boarder Posts: 3 Thank you received: 1 Hi Cornelius, a) A, B, C, D, F nodes use formula EF = ES + Duration - 1. E node uses formula EF = ES + Duration. Both formulas are ok, but please use it consistently for all nodes. b) The slack time, also known as float time, for an activity is the time between the earliest and latest start time. Critical activities, activities on the critical path, will always have zero slack. Slack = LF - EF Slack = LS - ES The only node on your diagram that fulfill both formulas is D. The rest look incorrect. Let me refer to Figure 6-16 in PMBoK guide (6-th ed). Regards, Ruslan. The following user(s) said Thank You: John Wolverton Your e-mail address will never be displayed on the site. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.

Wrong network diagram in "L06.03 - Sequence Activities Part 2" 5 years 2 months ago #14602

 Ruslan Krey Topic Author Offline Fresh Boarder Posts: 3 Thank you received: 1 Honestly, I would say that the root cause here is that only one slide is created for such a critical topic as CPM. It is unfair. If there would be one good example with details how to create a network diagram, then there was no room for such a flaw. Your e-mail address will never be displayed on the site. Check this box to be notified of replies to this topic. Note: BBcode and smileys are still usable.
